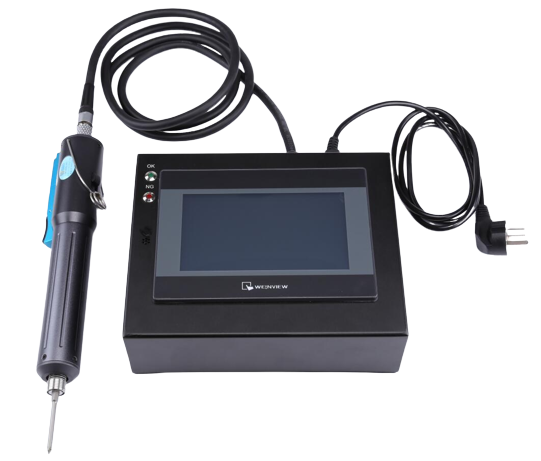

Product Features
High precision torque control, with a torque accuracy of ± 3% - ± 5%.
Using high-end imported motors, the product has a long lifespan and is maintenance free.
Accurate floating/sliding tooth detection, feedback to PLC or control card for abnormal handling.
Accurate tooth detection function ensures precise activation of tightening signals.
The lock payment results can be traced, exported, and uploaded to the MES system.
16 types of tightening tasks, each supporting 5 tightening steps, and disassembly tasks supporting 2 disassembly steps, ensuring high controllability of the tightening disassembly process.
Supports RS232/485 Modbus RTU communication protocol, has strong scalability, supports multiple IO inputs/outputs, can customize TCP/IP network ports non-standard, and can quickly build intelligent locking systems.
Easy to install and debug, providing interfaces and technical support for secondary development.
Leak proof and foolproof design: Infrared sensing counting prevents lock leakage during operation, and precise angle control prevents foolproof movement.
Improve yield and torque accuracy: It can avoid twisting the smart electric batch in hand, maintain perfect vertical or horizontal locking of the smart electric batch, and improve product yield and torque accuracy.
Improving work efficiency: Balancing the force arm can greatly improve assembly speed and quality, and enhance work efficiency.
Safe and convenient: The intelligent electric batch can be kept at a safe height during operation intervals, and is within reach, making locking safe and convenient.
More labor-saving: Improving the working environment can offset the weight of the smart electric batch and the reaction force during operation, and reduce muscle damage caused by repetitive movements.
Product parameters

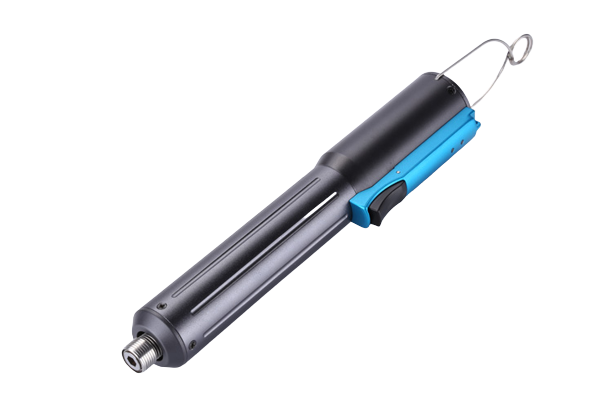

Handheld models are suitable for torque speed (rpm), weight (kg), torque accuracy, voltage (v)
DHSSY-XXY-542-CTR 5.0-42.0 (kgf. cm) Automatic mode: 30-800 0.9 ± 5% AC: 220
500-4200 (mN. m) High speed mode: 30-800 0.9 ± 5% AC: 220
DHSSY-XXY-170-CTR 10.0-70.0 (kgf. cm) Automatic mode: 30-600 0.9 ± 5% AC: 220
1000-7000 (mN. m) High speed mode: 30-600 0.9 ± 5% AC: 220
