Product Features

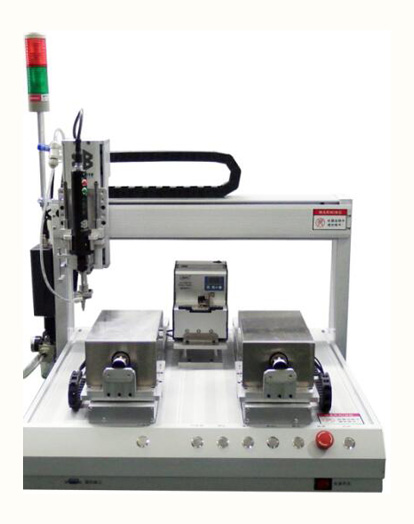

1. Adopting a dual Y-axis platform for fully automatic alternating operation, the machine can work continuously. When locking the workpiece on one workbench, it can be loaded on the other workbench, completely saving time for picking up and placing products. It is safe, convenient, fast, and efficient.
2. The equipment is designed with an automatic error compensation mechanism to ensure the accuracy and stability of the automatic screw locking machine.
3. Suitable for the production of multiple varieties and small batches of products.
4. The vacuum suction screw method is adopted, which has good universality and overcomes the characteristics of wind blown screws that cannot be sent with a length to diameter ratio smaller than 1.2, as well as the magnetic suction screw method that stainless steel screws cannot be sucked. It can be applied to almost all screws between M1.0-M4.0. If the screw changes, simply replace the suction nozzle.
5. In terms of device control, DPS+handheld programmer is used, with a friendly programming interface, programs that can be copied and duplicated, and are very flexible. The internal storage capacity is large, up to 1000 sets of locking screw programs can be stored. One product only needs to be programmed once, and after saving, it can be called when needed.
6. With a fully Chinese interface, the independently developed automatic screw locking control system can dynamically display the operating status and achieve real-time monitoring of the locking status of screws, recording whether each screw is OK or NG.
Product parameters
model
Itinerary XYZR 500 400 100
Action speed XYZ axis: 0-600mm/s Memory capacity 999 sets, 9999 points/set (infinite expansion)
Minimum analysis accuracy of 0.01mm, repeatability of ± 0.02mm
Power consumption startup 320W, normal operation 180W, air pressure 5kg/cm2
Suitable for screws with a diameter of ￠ 1.0mm to ￠ 4.0mm. Screw introduction method: blowing/suction type
Control system DSP controller+touch screen optional driving mode stepper motor+synchronous belt/servo motor+screw
System editing mode control handheld box system gear capacity 1000 processing gears
Working temperature 0-40 ℃, one-year warranty
