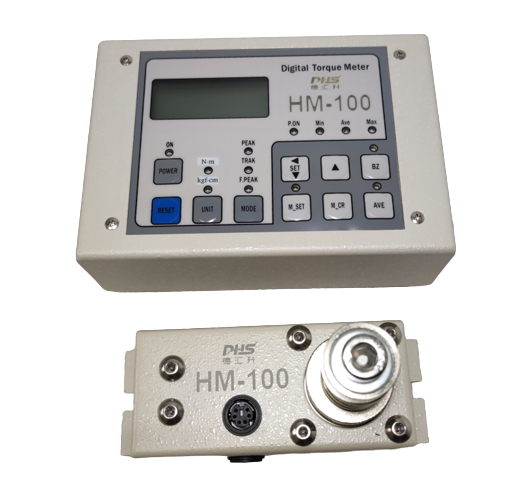

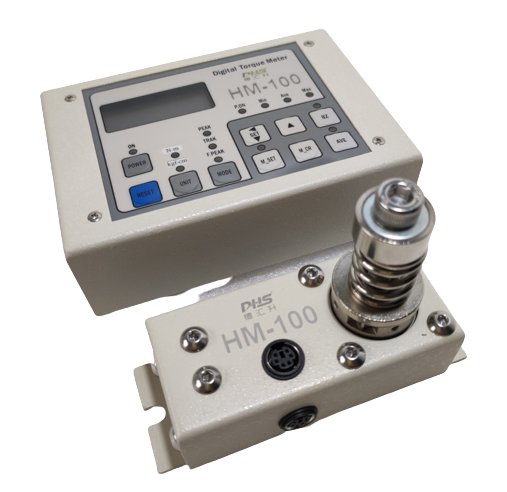

Model HM-100 accuracy within ± 0.5% (F.S.)
Torque measurement range: 0.15~10.00 N · m Test direction: clockwise and counterclockwise
1.5~90.0 (lbf · in) power supply 6V1300mA
1.5-100.0 kgf · cm charging time within 6 hours
When fully charged, it can be used continuously for about 12 hours. The battery life is about 300 times
Unit selection: N.m ←→ kg.cm Special charger input: AC100V-240V 50/60Hz
N. M ←→ lbf. in Output: DC 8.0V 500mA
External dimensions (host display part) 230 * 124 * 65 (unit: mm) External dimensions (torque detection part) 119 * 145 * 38.5 (unit: mm)
Installation size (detection part) spacing: 111mm, two M5 fixing screws weighing approximately 1.8kg
