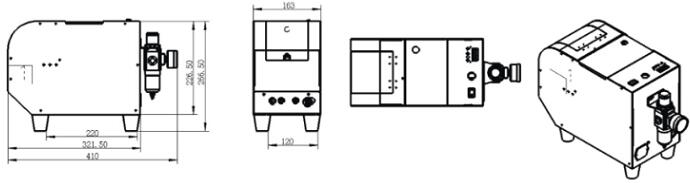

Dimension
Product Features
Reliable performance, high cost-effectiveness, fast loading speed, and automatic feeding.
Strong universality, improves work efficiency, and saves operation time.
After finishing each screw, the machine will automatically deliver the next screw to the nozzle, eliminating the need to hold the screw by hand.
Just align the screw hole directly and press the screw lightly to lock it, which is convenient and fast.
The machine has a beautiful appearance, innovative design, compact and convenient size, and can be placed on or off the stage.
Mainly suitable for assembly in industries such as electronics, plastics, toys, electrical appliances, and communication equipment.
Product parameters
Model D-1620 is suitable for screws M1.5-M5.0
Screw length ≤ 20mm, output speed 40-60pcs/minute
Product size 224 * 165 * 265mm, weight approximately 10.2kg
Loading method: Rotating feeding bin with effective capacity of 400mL
