Product Features
1. Wide applicability
Widely applicable to various types and lengths of screws, such as M1.2-M5.0 standard screws, special screws, short screws, self tapping screws, and screws with washers.
2. Smooth operation
The screw runs inside the drum, and any screw that does not enter the track in the correct direction will fall into the drum and enter the next cycle without any jamming of the screw.
3. Adjustable work efficiency
The feeding and vibration are independently controlled, and the ideal delay time can be freely set. The gear feeding turntable and the four degree picking disc are independently controlled, and the operating speed can be set according to different screws to adjust the speed of screw feeding and sorting, suitable for various operations.
4. It can significantly improve production efficiency
The screw automatically divides to the feeding port position, allowing for direct feeding without manual calibration, greatly improving production efficiency.
5. It has a counting function
The counting function automatically alarms, cycles, and comes with a digital display panel.
6. It has a fault alarm function
When abnormal situations occur, the screwdriver will automatically activate the alarm device.
Product parameters

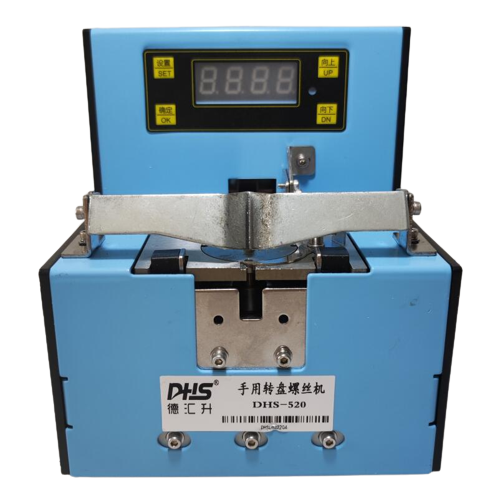

Model DHS-520 Input Voltage AC100V-240V 50/60HZ
Output voltage DC15V 1.5A, output speed 1 piece/second ± 0.3s
Product dimensions L205mm * W126mm * H153mm Net weight approximately 2.7kg
Suitable for screws M1.2 to M5.0 with a maximum screw length of L=15.0mm
